Sevro Automatic paper feed high speed digital die cutting machine-Hefei Gere-tech International Co, Ltd.

This machine is equipped with 4.3 inch high-definition touch screen, which can make your operation more easy and convenient.
Maxmium cutting speed is 1500mm/s
It is compatible with Windows and support CoreIDRAW/AI/AIDcut.
HD camera point seeking/circular marking/L-angle
USB/USB flash disk/network port/WIFI (optional)
Double layer carton packing
One year warranty
In-time after sale service

Parameters:

Model	S350
Origin	Hefei, Anhui, China
Trade mark	Refine
Maximum	350mm
Maximum cutting width	320mm
Blank size	Leave 5mm space around the material
Compatible system and output	Windows, support CorelDRAW/AI/AIDcut
Point seeking method	HD camera point seeking/circular marking/L-angle
Main board	32-bit processor/high-speed subdivision
Interface	USB/USB flash disk/network port/WIFI (optional)
Drive	Sevro
Touch screen display	4.3 inch high-definition touch screen
Drawing instruction	DMPL/HP-GL
Maximum cutting speed	1500mm/s
Maximum cutting thickness	80g-400g (white cardboard and coated paper)/1mm
Knife pressure	50g~800g (500 level digital cycle adjustment)
Mechanical accuracy	0.025mm
Repetition accuracy	<±0.1mm
Power Supply	AC90~240V/50Hz~60Hz
Positioning method	CCD camera positioning
Operation mode	Roller type/single sheet/multi sheet automatic feeding/segmented cutting
work environment	+5 ℃~+35 ℃, relative humidity 30%~70%
net weight	31KGS
Gross weight	44KGS
Overall dimensions	680445300mm
Package size	720480520mm

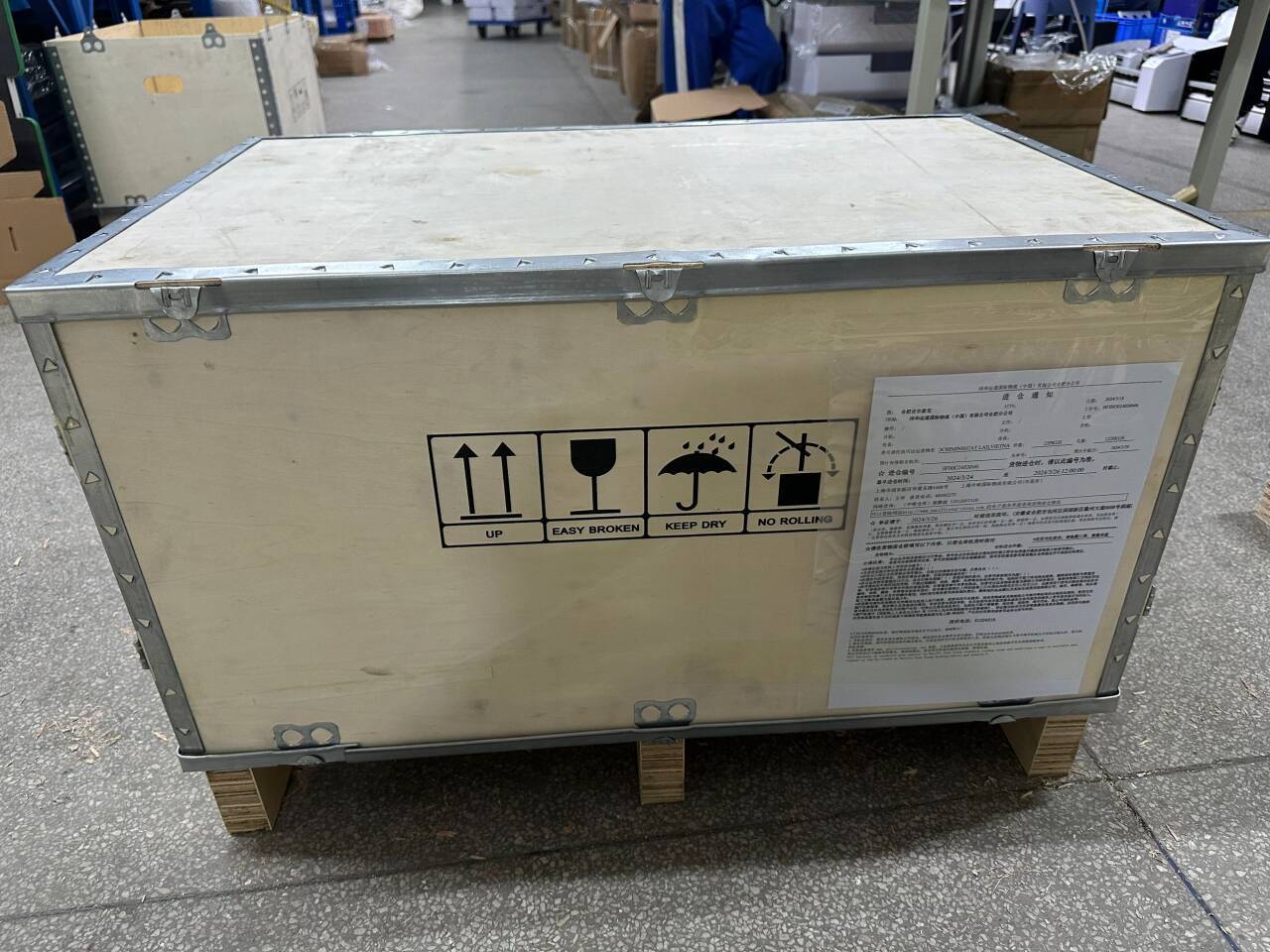

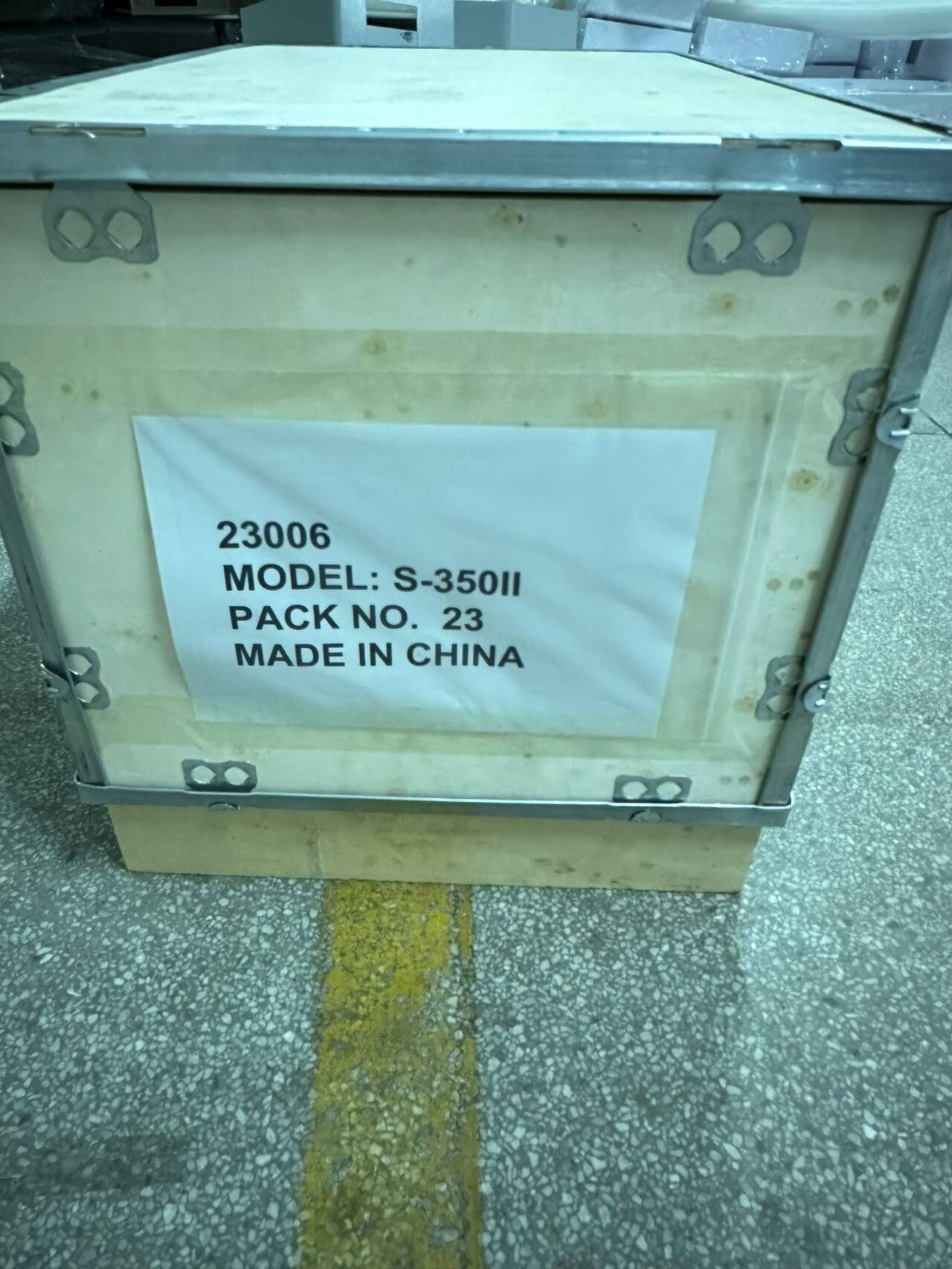

Packing:

Packing details	carton for outside packing
Seling unit	single item
Single package size	720480520mm
Single gross weight	44KGS

Shipment:
1) TNT/DHL/UPS for samples, door-to-door shipping service.
2) For batch machines, shipment is effected by Seaway (FCL or LCL).
3) We are able to arrange shipping. It's also acceptable if buyers nominate their own shipping agent.
4) Delivery time: 3 -7 days for samples; 10-20 days for batch goods.

Payment:
1) We accept T/T, Western Union, L/C(depending on order amount).
2) Sight L/C is acceptable if order amount exceeds usd20, 000.00.

Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Spain, UK, Russia, USA, Brazil, Mexico, Vietnam, Australia, Indonesia, Uruguay and many other countries.
